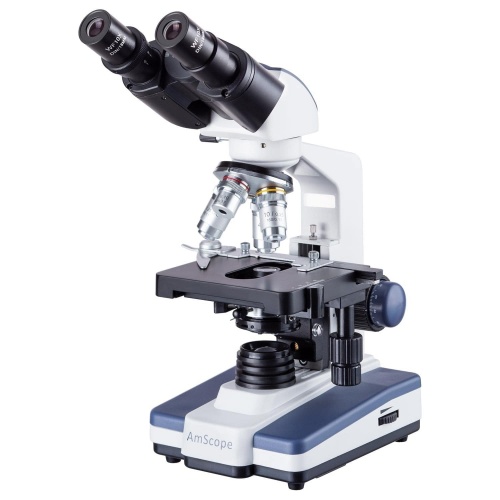

AmScope B120 Series Student & Professional LED Binocular Compound Microscope w/Siedentopf Head, 3D Mechanical Stage & Optional Digital Camera
The B120 binocular compound microscope is designed for teaching demonstrations, clinical examinations and laboratory applications. It is an ideal microscope for teachers and students, including those in medical school or with a major in biology. It has a number of advancements in functionality compared to other microscopes in its class, such as enhanced LED lighting, centerable condenser, and Siedentopf head adjustments. Use the microscope for studying fixed or live cells, bacteria, plants and soil, or water samples.
Viewing Head
To customize the microscope to your viewing comfort, the eyepiece spacing can be easily adjusted using a precision Siedentopf mechanism. A diopter is available on the left ocular tube to compensate for asymmetry, and the ocular tubes are angled at 30° to comfortably accommodate a seated position without neck strain.
Optics
The objective turret provides instant access to 4 magnification levels to easily focus in on minute details from 40X to 1000X. Additional 25X eyepieces expand the maximum magnification to 2500X with 6 unique levels. These high-quality lenses are achromatically corrected to improve resolution and color accuracy.
The Stage
The 3-layer mechanical stage provides smooth and precise movement for examination of specimen slides. The stage low-position controls are conveniently placed near the coaxial focus knobs for a streamlined workflow.
Transmitted Illumination
The LED sub-stage lighting provides cool, energy-efficient illumination. The light-source is daylight balanced to produce natural colors for imaging. With our specially developed fly-eye lens, the light is evenly distributed at maximum brightness to improve contrast and resolution. Illumination is further enhanced by a centerable Abbe condenser.
Specifications
- Optical System: Finite-conjugate
- Mechanical Tube Length: 160mm
- Head: Binocular, 30° incline, 360° rotatable
- Interpupillary Adjustment: Siedentopf, 53-77mm
- Eyepieces: 10X, 25X
- Objective Lenses: DIN standard 4X, 10X, 40X, 100X
- Stage Dimensions: 118mm x 127mm
- Condenser: NA1.25 Abbe condenser with iris diaphragm
- Transmitted Illumination: Variable-intensity 1W LED
- Power: 100-240VAC 50/60Hz
- Availability: In Stock at Supplier, ETA 7 - 14 days
- Model: B120C-3PL
