AmScope SM-4 Series Zoom Trinocular Stereo Microscope 7X-45X Magnification on Black Double Arm Boom Stand

AmScope SM-4 Series Zoom Trinocular Stereo Microscope 7X-45X Magnification on Black Double Arm Boom Stand with LED ring light and 10mp camera
R38,434.00
Qty:

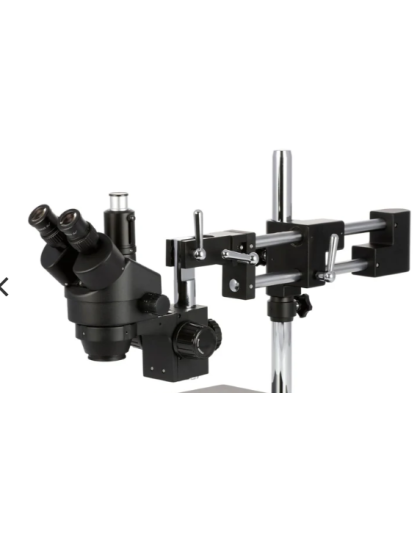

AmScope SM-4 Series Zoom Trinocular Stereo Microscope 7X-45X Magnification on Black Double Arm Boom Stand - can be increased to 90x with 2x barlow lens.

This is the black version of our popular trinocular 7X-45X zoom stereo microscope that gives crystal clear sharp images. It comes with a trinocular head with 30mm super widefield, high-eyepoint 10X eyepieces and a double-arm heavy-duty boom stand. The 45 degree inclined trinocular and high-eyepoint design ensures an easy observation, especially for eyeglass wearers. The trinocular port enables to add photographic or video capability. The double-arm boom stand allows you to turn the microscope head around three different axes (x, y, and z), allowing you to point the microscope head toward to ANY direction. This microscope offers high resolution, super widefield of view, 6.5:1 magnifying zoom range and 4" (100mm) working distance. It is an ideal instrument for research labs, gemologists, engravers, collectors and anyone in semiconductor and/or electronic industry.

Features :

  • 7X-45X Continuous Zoom Magnification Range
  • Trinocular Design for High Quality Photo, Video or PC Attachment
  • Upright Tube for USB Digital Camera, Video Camcorder or CCD Camera
  • 30mm Super Widefield 10X Eyepieces
  • 4" (100mm) Large Working Distance
  • 45 Degree Inclined Trinocular Head
  • Crystal Clear Original True Color Images
  • Erect Sharp Stereo Images over a Super Widefield of View
  • High Resolution with Great Flatness and Contrast
  • Accurate Alignment Ensuring Fatigue-Free Comfortable Observation
  • Both Ocular Tubes with Adjustable Diopters
  • Adjustable Interpupillary Distance
  • Full Optical Glass Elements
  • Precise Ground Glass Lenses
  • Versatile Boom Stand Covering Large Working Area
  • Double-Arm Design for 3-Degree Freedom, Allowing Placing Microscope Head Toward to Any Direction
  • Rugged Solid Cast Steel Base Finished with Stain Resistant Enamel
  • All Metal Mechanical Components
  • Manufactured under ISO 9001 Quality Control Standard



Specifications :

  • Head: 45 degree inclined 360 degree swiveling trinocular
  • Eyepieces: 30mm super widefield high-eyepoint WF10X/20
  • Objective: 0.7-4.5X
  • Zoom Ratio: 6.5:1
  • Maximum Field of View: 1-1/4" (33mm)
  • Minimum Field of View: 3/16" (4.75mm)
  • Diopter Adjustment: +/-5dp
  • Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
  • Working Distance: 4" (100mm)
  • Boom Stand: 20" double-arm (overall length: 30"), 17" high pillar, 10-1/4"x8-1/4"x2-0" solid cast steel base



Packing List:

  • One Trinocular Stereo Zoom Head
  • One Pair of Super Widefield 10X Eyepieces
  • One Double-Arm Boom Stand
  • One Focus Rack
  • User's Manual
  • Shipping Weight: 75 lbs
  • Packages: 2 (60 lbs 15 lbs)

Camera Specifications:

  • Sensor: Aptina MT9J001
  • Sensor Size: 1/2.3" (6.44mm(H) x 4.616mm(V))
  • Resolution: 3584 x 2748 (approx. 10,000,000 pixels)
  • Reduction Lens: 0.5X
  • Pixel Size: 1.67µm x 1.67µm
  • Frame Rate: 38fps @872x654, 11fps @1744x1308, 3.3fps @3584x2748
  • Exposure: 0.4~2000ms, ROI Auto & Manual
  • Scan Mode: Progressive
  • Dynamic Range: 65.2dB
  • A/D Converter: 12-bit Parallel, 8-bit R.G.B to computer
  • SN Ratio: 34dB
  • Spectral Range: 380-650nm (with IR-filter)
  • Binning: 1x1, 2x2, 4x4
  • White balance: ROI White Balance/ Manual Temp-Tint Adjustment
  • Color Rendering Technique: Ultra Fine Color Engine
  • Capture/Control API: Native C/C++, C#, Directshow, Twain, Labview
  • Recording System: Still Picture and Movie
  • Cooling System: Natural
  • Operating Temperature: -10°C~50°C
  • Storage Temperature: -20°C~60°C
  • Operating Humidity: 30~80%RH
  • Storage Humidity: 10~60%RH
  • Power Supply: DC 5V over USB Port

Software Features:

  • Operating System: Windows 8.1/10/11 (32 & 64 bit), Mac OS X, Linux
  • PC Requirements: CPU equals to Intel Core2 2.8GHz or higher, Memory: 2GB or more, USB2.0 port
  • Advanced software for Windows:
    - offers Stitching, EDF, video recording and measurement functions
    - conducts measurements for lengths, angles, arcs, areas and etc.
    - saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
    - edit and process microscopy images in a manner similar to PhotoShop
    - live video and still image capture can be set in different resolutions simultaneously
    More features: add layers, watermarks, mosaics, tiles; adjust color balance, exposure, saturation, contrast, orientation; change resolution, histogram, granulation, diffusion; transform images via edge detection, digital image warping; conducts measurements for single, parallel or perpendicular lines and rectangular, elliptical and irregular areas; adds notes, measurements, text, arrows, labels, and etc. using customizable text with different sizes and colors; conducts measurements in microns, millimeters, centimeters, inches, feet, and etc. under any magnification powers with desired tolerances
  • Life-time free software upgrades

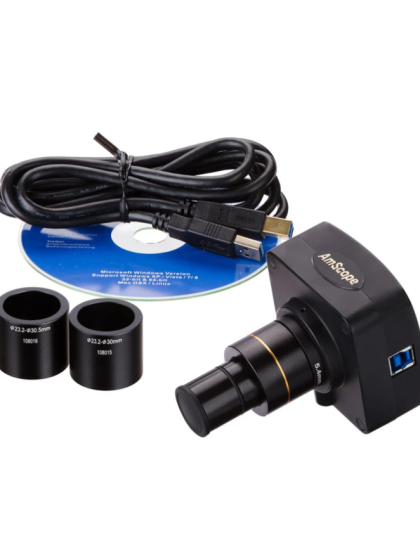

Packing List:

  • 10MP digital camera
  • 0.5X reduction lens
  • 6' (1.8m) USB cable
  • 30mm and 30.5mm adapters
  • calibration slide
  • CD with software and user's instructions

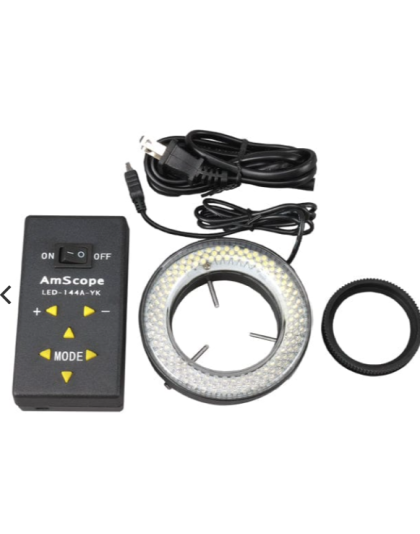

AmScope 144 LED Four-Zone Microscope Ring Light with Adapter

Key Features

    • 144 LED white bulb ring light with intensity control
    • Provides strong shadow free illumination
    • 4 individual lighting zones for changing lighting directions
    • Mounting size: up to 2-2/5" (61mm); OD: 4" (100mm)
    • Wide band voltage power supplies from 100V to 240V



  • Availability: In Stock at Supplier
  • Model: SM-4
  • Manufacturer: Amscope
