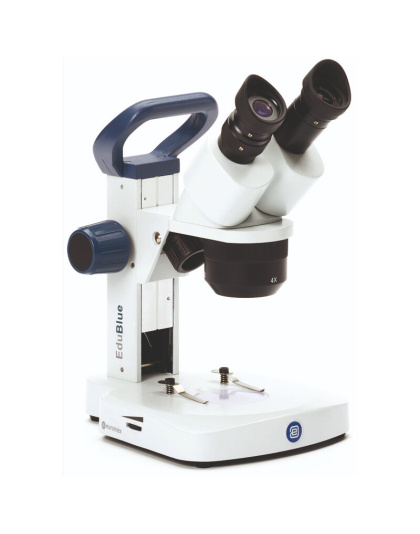

Euromex Stereo microscope ED.1402-S, EduBlue 2x / 4x

HIGHLIGHTS OF THE SERIES

• The ideal stereo microscopes for beginners

• Binocular and trinocular models available

• Robust and stable metal stands with secured eyepieces

• With 2x/4x magnification

• Rack and pinion stand or pillar stand

• 1 W LED incident and transmitted light

• Wireless operation with batteries possible

• Digital models with 5 MP camera available

• Ergonomic carrying handle

TECHNICAL DATA OF THE SERIES

eyepieces:

• One pair of secured WF10x/20mm eyepieces with eyepiece cups

• Diopter adjustment ± on left eyepiece

Head:

• Binocular 45° inclined

• Eye relief from 55 to 75 mm

lenses:

• Revolver with double magnification:  2x/4x

 • Working distance 60 mm

• Field of view 10/5 mm

• Magnification can be changed with optional eyepieces

• All optics are anti-fungal treated

tripod:

• Rack and pinion stand or pillar stand equipped with 2 object clamps and Ø 60 mm transparent and black/white plate

• Two coarse adjustment knobs

lighting:

• Transmitted and reflected light with 1 W LED lighting, can also be used simultaneously

• Adjustable illumination intensity

A pair of secured WF10x/20mm wide field eyepieces with eyecups
Binocular head with 45° inclined tubes. Diopter adjustment on one tube. Interpupillary
distance adjustable between 55 and 75 mm
Dual 2x/4x revolving objective, 20x/40x magnification. Field of view 10 mm and 5 mm
Working distance 60 mm. Maximum object height 26 mm
Rack and pinion stand. Supplied with black/white stage plate, transparent plate and 2
object clamps
Incident and transmitted 1W LED cordless illumination with rechargeable batteries and
external main adapter. Both illumination intensities can be adjusted separately. Paint with
Antibacterial Protection Layer
Supplied with dust cover in Styrofoam case


• Availability: In Stock at Supplier
• Model: ED.1402-S
