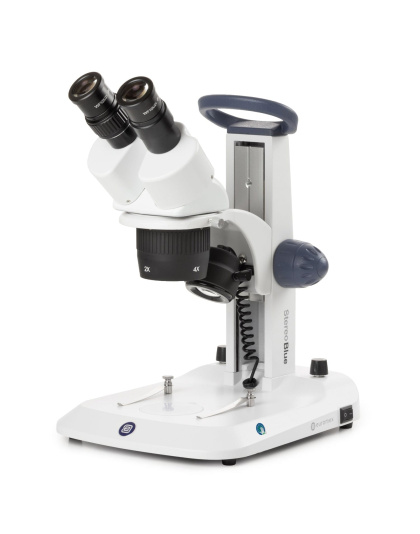

Euromex StereoBlue Series Binocular Stereo Microscope 20X-40X Magnification with 2X/4X Objective Lenses on Dual Illumination Track Stand
R17,989.40
EYEPIECES
Pair of WF10x/21 mm eyepieces supplied with eyecups.
HEAD
• Binocular 45° inclined tubes.
• Diopter adjustment on one eyepiece.
• Interpupillary distance adjustable between 55 mm and 75 mm.
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput.
DUAL MAGNIFICATION MODELS
• Nosepiece with dual 2x/4x revolving objectives.
• Magnifications 20x/40x (can be enlarged to 135x).
• Working distance 100 mm.
MAGNIFICATIONS
Working distance and field of view specifications.
| EYEPIECES - 10x/21 mm | |||||
| Magnification | Working | Minimum | Maximum | Maximum | Minimum |
| 0.5 | 170.0 | 3.5 | 22.5 | 59.9 | 9.3 |
| 0.75 | 114.0 | 5.3 | 33.8 | 40.0 | 6.2 |
| Standard | 100.0 | 7.0 | 45.0 | 30.0 | 4.6 |
| 1.5 | 48.0 | 10.5 | 67.5 | 19.9 | 3.1 |
| EYEPIECES - 20x/10 mm | |||||
| Magnification additional lens | Working | Minimum | Maximum | Maximum | Minimum |
| 0.5 | 170.0 | 7.0 | 45.0 | 28.6 | 4.4 |
| 0.75 | 114.0 | 10.5 | 67.5 | 19.0 | 3.0 |
| Standard | 100.0 | 14.0 | 90.0 | 14.3 | 2.2 |
| 1.5 | 48.0 | 21.0 | 135.0 | 9.5 | 1.5 |
STANDS
• The rack & pinion stand of the StereoBlue is equipped with an ergonomically designed flat base, complete with two object clamps and Ø 60 mm transparent and black/white stage plate.
• The coarse adjustment is equipped with tension control.
• The stands are alloy metal cast with hardened coating.
ILLUMINATION
• With 3W transmitted and incident LED illuminators which can be used simultaneously or adjusted separately.
Supplied with power cord, dust cover, eyecups, a spare fuse, Ø 60 mm transparent and black/ white stage plates, and user manual. All packed in a polystyrene box
The spare fuse, Ø 60 mm transparent, and black/ white stage plates are not applicable for -U and -B models
- Availability: In Stock at Supplier, ETA 7 - 14 days
- Model: SB1402
- SKU: SB1402
