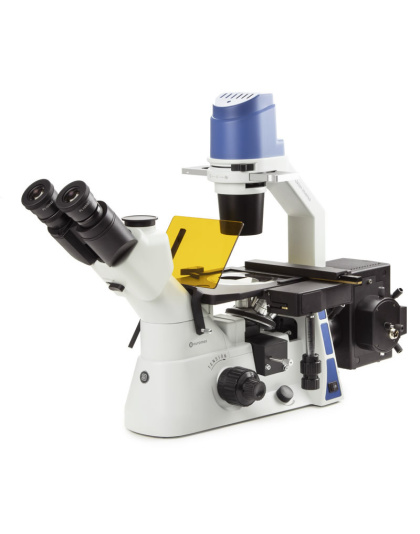

OX.2453-PLF - Inverted microscope for fluorescence with mechanical stage PL Fluarex 10/20/40x - Railfor

3 filter blacks and BF position and with transportation box Pair HWF 10x/22 mm eyepieces - Trinocular head, 45° inclined tubes. Tubes can be positioned in upper or lower positions if Interpupillary distance 54-75 mm. Diopter adjustment on left eyepiece “a4 Reversed quintuple revolving nosepiece on ball-bearings a Plan Fluarex PL 10x, 20x . c All optics are anti-fungus treated and anti-reflection coated for maximum light throughput / % 250 x 230 mm stage with 120 x 78 mm mechanical stage m Supplied with glass insert with 30 mm hole, a metallic insert with 25 mm hole, a metallic il insert for 35 mm diameter Petri dish holder, a 76x26 mm slide holder with 54mm Petri dish holder and a Multiwell holder with 65 mm Petri dish holder Coaxial coarse and fine adjustments. Precision 2 um, 0.2 mm per rotation. Total travel approximately 25 mm N.A. 0.30 condenser with iris diaphragm and filter holder, working distance 72 mm Transmitted 100 W mercury vapor fluorescence and 5 W NeoLED brightfield illumination with internal power supply 100-240 V {CE) and UV protection shield Supplied with 3 filter blocks with standard filter sets: - Blue: EX465-495 DMS50SLP EM515-558, - Green: EX520-580 DM600LP EM605-665 - UV1: EX361-381 D415LP EM435-495 Supplied with power cord and transportation box

• Availability: In Stock at Supplier, ETA 7 - 14 days
• Model: OX.2453-PLF
• SKU: OX.2453-PLF
