R467,152.40

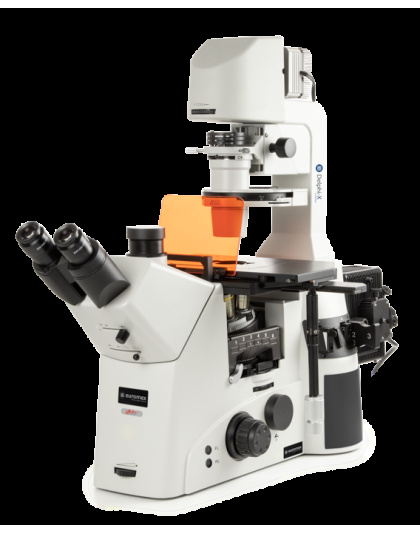

Phase Semi-Apochromatic Fluarex PLPHFi 10x/20x/40x IOS objectives with 5-positions nosepiece. Transmitted 3W NeoLED illumination. LED epi-fluorescence for with 365, 485 and 525 nm LED with long-pass filters sets for B, G and UV excitation HWF 10x/22 mm eyepieces @ 30 mm with diopter adjustment | Binocular head with 45° inclined tubes. Interpupillary distance 48-75 mm. Optional side } photo port, 100-0/0-100. Diopter adjustment on both eyepieces + Reversed quintuple revolving nosepiece on ball-bearings .% Plan Phase Semi-Apochromatic Fluarex PLPHFi 10x/20x/40x IOS objectives with 1.2 mm 4d ¢~ cover glass correction. M25 thread. All optics are anti-fungus treated and anti-reflection ) coated for maximum light throughput . 170 x 250 mm stage with 128 x 80 mm mechanical X-Y stage = @* — Coaxial coarse and fine adjustments with 200 graduations. Precision 1 jum, 0.2 mm per rotation, Tension adjustment Rotating condenser N.A. 0.30 with iris diaphragm and filter holder. Working distance 75 mm, without condenser 187 mm LED epi-fluorescence attachment with 365, 485 and 525 nm LED Supplied with standard long pass filters cubes: Blue excitation EX: 460-495 nm BS: 505 nm EM: 510 nm LP Green excitation EX: 510-550 nm BS: 570 nm EM: 875 nm LP UV excitation EX: 330-385 nm BS: 410 nm EM: 420 nm With UV protection shield Transmitted 3W NeoLED illumination with adjustable intensity and internal power supply 100-240 V (CE). Fuse 500 mA 250 Vac LCD display with iCare energy saving function, light intensity and magnification memory
- Availability: In Stock at Supplier, ETA 7 - 14 days
- Model: AI.3053-PLPHFi
- SKU: AI.3053-PLPHFi
