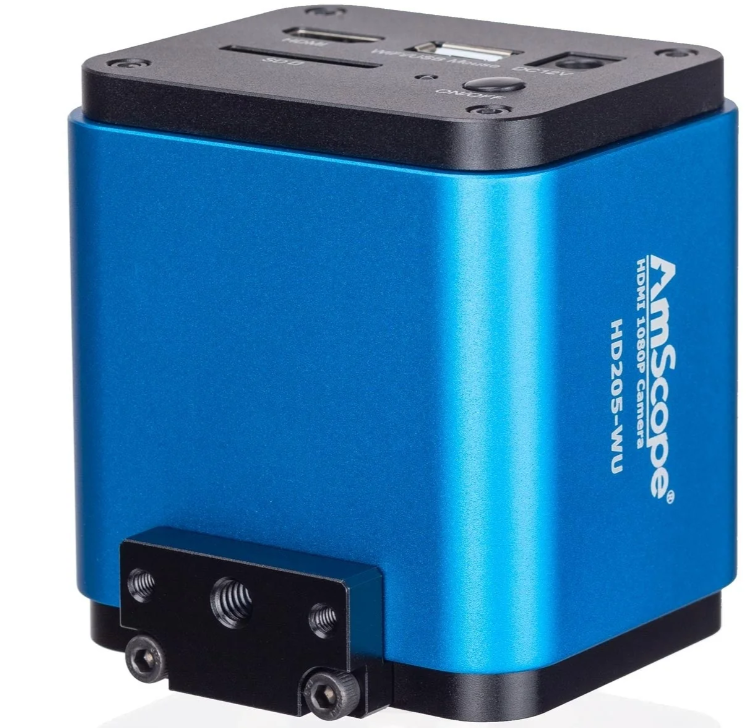

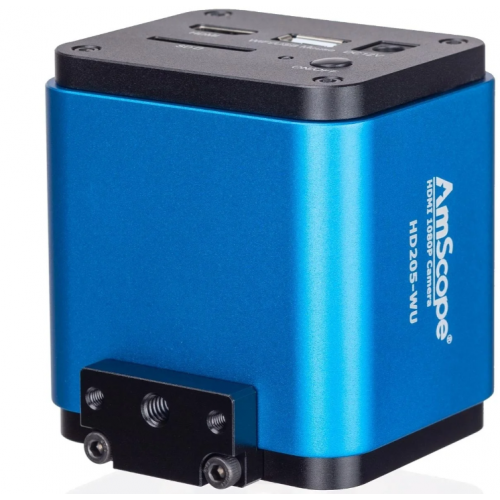

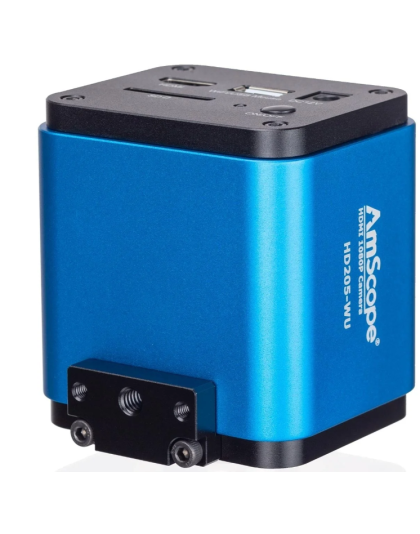

AmScope HD Series 1080p 60fps 5.0MP HDMI + Wi-Fi Color CMOS C-mount Microscope Camera for Stand-alone and PC Imaging

The HD-205-WU is an HDMI-capable digital camera, delivering 1080p video up to 60fps, and 5MP still images. The highly-sensitive digital sensor makes this camera ideal for low-light applications, including dark-field and fluorescence
R13,860.00
R16,720.00
Qty:
Download Quote Print product description

The HD-205-WU is an HDMI-capable digital camera, delivering 1080p video up to 60fps, and 5MP still images. The highly-sensitive digital sensor makes this camera ideal for low-light applications, including dark-field and fluorescence. Able to be used as a standalone recording device using Secure Digital memory, or as a WiFi camera on a networked computer, this is an extremely flexible imaging solution. The industry-standard C-mount design allows this camera to be connected directly to C-mount photo-ports, or used in conjunction with an array of lenses and adapters to mount to virtually any popular microscope line.

Connected to an HDMI monitor or TV, 1080p live video can be viewed at a super-smooth 60fps. The included USB mouse allows you to make adjustments in the internal software for settings such as white-balance and exposure, and control recording functions. As an alternative solution, connect to the camera over WiFi for remote software control, with 25fps streaming. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.

Notice: an adapter is required to mount the camera to 23mm photo ports. A 0.5X reduction lens is recommended.

Specifications

Sensor Specifications
ModelIMX178 (color)
Sensor TypeCMOS
Sensor Optical Format1/1.9"
Active Pixels5.04M (2592 x 1944)
Pixel Size2.4µm x 2.4µm
Active Sensor Area6.22mm x 4.67mm
Shutterelectronic rolling shutter
Sensitivity425mV @ 1/30s (f/5.6)
Spectral Response380-650nm with IR-cut filter
Other Camera Specifications
Video Preview Resolution (HDMI)1920 x 1080
Video Preview Framerate (HDMI)60fps
Video Capture Resolution1920 x 1080
Video Capture Framerate30fps (SecureDigital)
25fps max (wi-fi)
Internal Video Capture FormatASF
Photo Capture Resolution2592 x 1944
Internal Photo Capture FormatJPG
Recording MediaSecureDigital card
ConnectivityHDMI, wi-fi
Wi-fi Standard802.11n 150Mbps
Lens-mountC-mount
Compensating Lens0.5X (optional)
Power12VDC 1A
Dimensions78mm x 65mm x 88mm
Operating Temperature-10-50°C
Operating Humidity30-80%

Software

OS RequirementsWindows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
Hardware RequirementsIntel Core2 2.8GHz or comparable processor, 4GB RAM
Features
Windows Version
Live video preview
Captures still images and video
Time-lapse capture
Exposure and white-balance controls
Dark-field correction
Digital binning
Image processing
Measurement tools, including lines, arcs, polygons
Segmentation and counting tools
Image-stitching, extended depth-of-field, HDR
Fluorescence color-mapping
Mac/Linux Versions
Live video preview
Captures still images and video
Exposure control
Color adjustment
Measurement tools, including lines, arcs, polygons

Contents:

  • One HD Digital Camera
  • One USB Mouse
  • One USB WiFi Antenna
  • One HDMI Cable
  • One SD Card
  • One Power Adapter
ETA 7 - 10 DAYS
  • Availability: In Stock at Supplier
  • Model: HD205-WU-3PL
  • Manufacturer: Amscope
