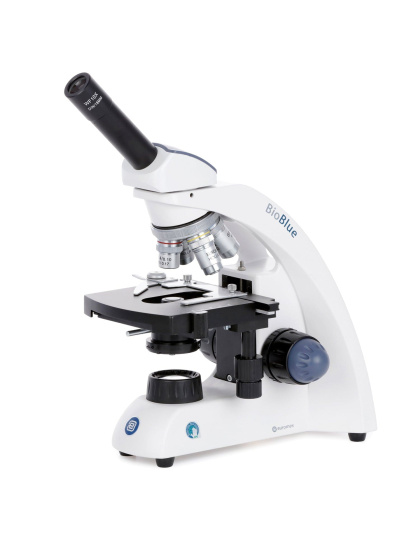

Euromex BioBlue Series Monocular Compound Microscope 40X-1000X Magnification with Mechanical Stage and 1W LED Cordless Illumination

The modern microscopes of the BioBlue series are specially developed for educational purposes with a primary focus on ergonomics and today’s quality standards.

The DIN WF 10x/18 eyepieces and the semi-plan achromatic corrected 45 mm DIN objectives of the BioBlue models generate a crisp high-resolution image. When changing magnification the image remains perfectly in focus and centered. The 120 x 120 mm plain stage and 130 x 130 mm stage with double layered 70 x 28 mm X-Y mechanical stage enable a 2 µm precision positioning of specimens.

EYEPIECE(S)
• WF10x/18 mm Widefield

HEAD
• All heads are 360° rotatable and secured
• 45° inclined tubes

NOSEPIECE
• Reversed quadruple nosepiece on ball bearings

OBJECTIVES - 45 MM parfocal
• Supplied with semi plan 4x/0.10, 10x/0.25, S40x/0.65, S100x/1.25 oil immersion objectives
• The S40x and S100x oil immersion objectives are spring-loaded (to prevent damage to samples and objectives)
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

FOCUSING
• Coaxial coarse and fine adjustments with 200 graduations. Precision 2 μm per graduation, 0.4 mm per rotation
• Total travel approximately 23 mm
• Supplied with an adjustable rack stop to prevent damage to samples and objectives
• The coarse adjustment is equipped with friction control

CONDENSER
• Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder

ILLUMINATION
• Supplied with an adjustable 1W LED illumination
• Includes rechargeable AA batteries and integrated 100-250 Vac power supply for cordless operation

• Availability: In Stock at Supplier, ETA 7 - 14 days
• Model: BB4250
• SKU: BB4250
