Euromex digital Long working distance AF macrozoom 4K/1080p, no stand or light source MZ.4707

The MZ.4702 integrates a high-definition HDMI camera, an electrically controlled continuous zoom auto focus lens, with a focusing range between 400 and 670 mm.
R31,900.00
Qty:
Download Quote Print product description

Highlights

  • Long working distance up to 67 cm
  • Autofocus
  • Stand-alone or PC operated
  • Sony 8.3 CMOS sensor
  • 18x optical zoom ratio
  • Auto or manual focus
  • Great for QC or production sites
  • 400-670 mm extra large working distance
NO STAND OR LIGHT SOURCE INCLUDED.


ZOOM OBJECTIVE

  • The 16 elements objective has a 18x zoom ratio with manual or automatic focusing function
  • Fields of view from 65 x 37 cm (1x zoom) to 3.6 x 2 cm (18x zoom)
  • On-screen magnification 0.8-14.5x @600 mm working distance. (24“ screen)
  • Focusing range is between 400 and 670 mm

WD = working distance

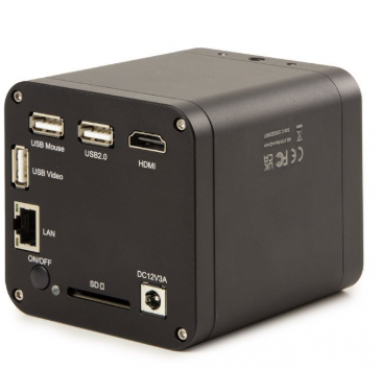

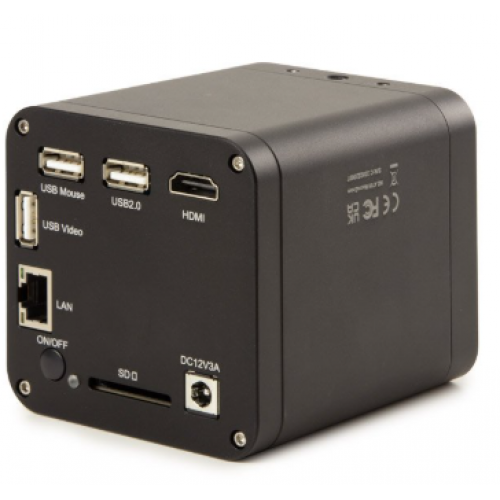

CAMERA

  • The 8.3 MP camera is equipped with a Sony 1/2.8 inch 4K UHD/1080P CMOS High Definition sensor with high signal-to-noise ratio generating a 3840 x 8160 pixels video streaming up to 60 images per second
  • The 4K/UHD signal fits the HDMI input of a HD screen
  • Image and video storage is done on a built-in SD card, or USB flash drive (not included)
  • Stand-alone or PC operated (ImageFocus Alpha)

ILLUMINATION

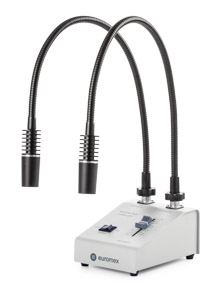

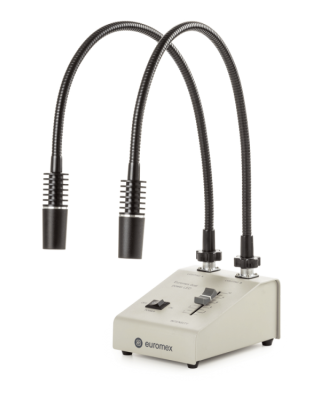

For Illumination, we recommend using Euromex LE.5207 or LE.5212, NOT INCLUDED

LE.5207_BLE.5212_B

PC/MAC Software
Operates with ImageFocus Alpha imaging and measuring software for Windows 10 and higher (32 and 64 bit configurations) MacOS and Linux for a full range of image management tools

PACKAGE CONTENT
Supplied with a 32 GB SD card, mouse, WiFi dongle, HDMI cable and external 100-240 Vac / 12Vdc / 3A power supply

ETA 7-10 DAYS, MAY BE EXTENDED DEPENDING ON AVAILABILITY FROM THE MANUFACTURER.

  • Availability: In Stock at Supplier
  • Model: MZ.4707
