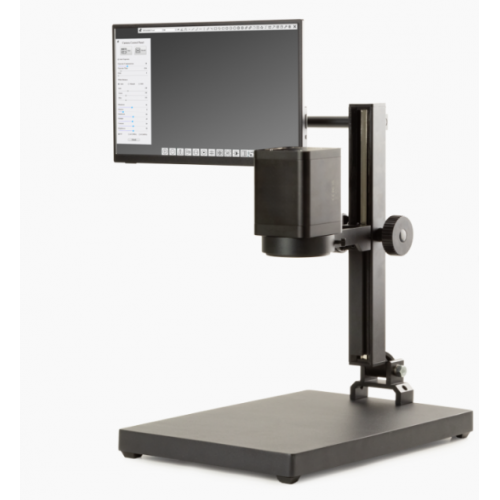

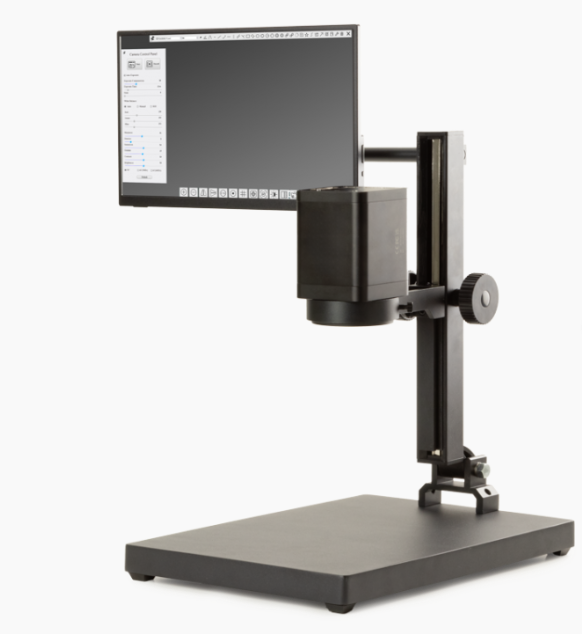

Euromex digital MacroZoom MZ.4700(-HDS) Microscope with HD screen

ZOOM OBJECTIVE

• The 16 elements objective has a 18x zoom ratio and produces magnifications up to 0.56 magnification with a manual or automatic focusing function
• Field of views from 255 x 145 mm (1x zoom) to 14 x 8 mm (18x zoom
• On-screen magnification 2.8 to 47x @190 mm WD (24“ screen)
• Focusing range is between 205 and 225 mm

WD = working distance

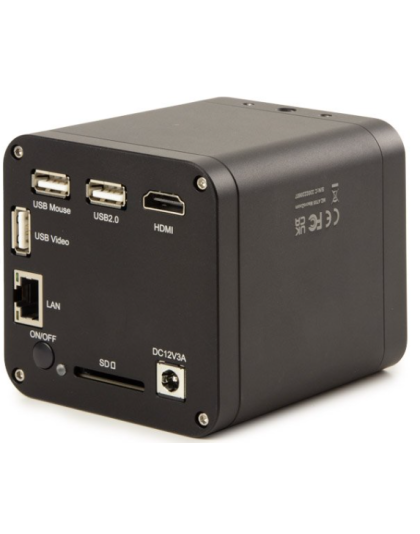

CAMERA

• The 8.3 MP camera is equipped with a Sony 1/2.8 inch
• 4K UHD/1080P CMOS High Definition sensor with high signal-to-noise ratio generating a 3840 x 8160 pixels video streaming up to 60 images per second*
• The 4K/UHD signal fits the HDMI input of a HD screen
• Image and video storage is done with a built-in SD card
• Stand-alone or PC operated (ImageFocus Alpha)
  * Frame rates have been determined at optimal conditions

BUILT-IN SOFTWARE
The built-in intuitive software is controlled by the supplied and to the camera connected computer mouse. It features a camera control panel, a autofocus control panel and a measurement toolbar

ILLUMINATION

• A standard LED ring light assures a good standard lighting of the sample

PACKAGE CONTENT
Supplied with a HD screen, standard ring light, a 32 GB SD card, mouse, WiFi dongle, HDMI cable and an external 100-240 Vac / 12Vdc / 3A power supply

ORDER PRODUCT REFERENCES

MZ.4700-HDS
Stand-alone digital autofocus MacroZoom ⁽¹⁾ with standard ⁽²⁾ stand and HD screen
