OMAX 40X-2000X Binocular Compound LED Microscope with Glass Slides & Covers

OMAX 40X-2000X Binocular Compound LED Microscope with Glass Slides & Covers

Sku: M82ES-SC100

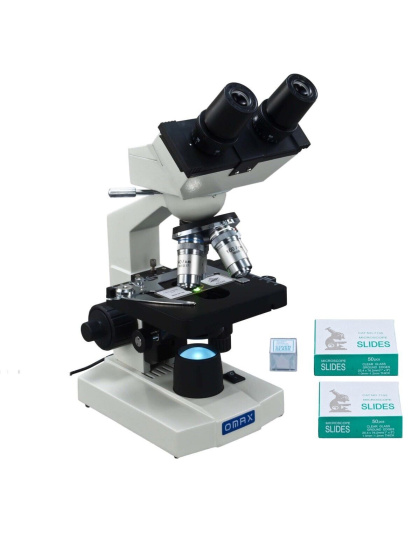

This is a package of a compound binocular LED microscope with blank glass slides, cover slips. It offers eight level magnifications from 40X to 2000X. The biological LED microscope comes with a sliding binocular viewing head, two pairs of widefield eyepieces (WF10X, WF20X), four achromatic objectives DIN 4X, 10X, 40X(S), 100X(S, Oil), large double layer mechanical stage with scale, Abbe NA1.25 condenser with iris diaphragm, coaxial coarse & fine focus knobs and variable intensity LED transmitted illumination system. It easy to connect USB digital camera (sold separately) to record what you see in the microscope and saving it into your computer as a picture or a video clip. The compound microscopy is suitable for teaching demonstration, medical labs, educational lab environments, veterinary clinics.

Features:

· 8 levels of magnification: 40X-80X-100X-200X-400X-800X-1000X-2000X

· Double layer mechanical stage with NA1.25 Abbe condenser & iris diaphragm

· Sliding binocular head with adjustable interpupillary distance

· Coaxial coarse & fine focus knobs and variable intensity LED light

· 100-piece blank glass slides & cover slips included

Specifications:

· Model: M82ES-SC100

· Total magnification: 40X-80X-100X-200X-400X-800X-1000X-2000X

· Eyepieces: widefield WF10X/18 and WF20X

· Objectives: achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)

· Viewing head: 45°Inclined 360°swiveling binocular

· Interpupillary distance: sliding adjustment 2-3/16" ~ 2-15/16" (55~75mm)

· Diopter: adjustable on both eyepiece tubes

· Nosepiece: revolving quadruple

· Stage: double layer X-Y mechanical stage with scales, size: 4-1/2"x 4-15/16" (115mm x 125mm)

· Stage X-Y stroke (travel range): 2-13/16" x 1-3/16" (70mm x 30mm)

· Condenser: NA1.25 Abbe condenser with iris diaphragm & filter holder, rack & pinion adjustment

· Illumination: transmitted, LED light, intensity adjustment

· Focus adjustment: coaxial coarse & fine knobs on both sides

· Stage upward moving lock protects objectives and slides

· All metal mechannical components

· 100-piece blank glass slides with100-piece cover slips included

· Power supply: AC/DC adapter, 100V-240V (UL approved)

· Comes with UK Plug + EU adapter

· Dimension: 9-1/16" x 7-1/8" x 13" (23cm x 18cm x 33cm)

· Package weight: 11 lbs (5 kg)

Packing List:

· Binocular microscope

· 4 DIN achromatic objectives: 4X, 10X, 40X, 100X

· A pair of eyepieces WF10X/18

· A pair of eyepieces WF20X

· A bottle of Immersion oil

· AC adapter (US and Canada standard)

· Dust cover

· Color filter

· One pack of blank glass slides

· One pack of cover slips

· EU Plug adapter

Optional Parts and Accessories (sold separately):

· USB digital cameras

· Prepared slides

· P16X eyepiece

· Darkfield condensers

· Vinyl carrying case

· Lens cleaning paper
