Optics

The stereo optics provide clear, sharp images with excellent focus-depth and a large working-distance. With 0.7X-4.5X zoom objectives, moving through the magnification range is as easy as turning a knob. 10X wide-field eyepieces provide an ample magnification range from 7X to 45X, with high-eyepoint optics to accommodate glasses or goggles.

Ocular Adjustment

Dual ocular diopters can be adjusted to maintain consistent focus, greatly improving productivity. Rotating interpupillary adjusters simplify the process of aligning the eyepieces for each user.

Trinocular Port

The switched trinocular photo-port provides a dedicated mount for a camera. When the photo-port is switched open, all light from the left objective is diverted to the port to provide maximum brightness for the camera to guarantee the best quality images. This microscope uses our CX series trinocular port, so it can be easily replaced with optional C-mount ports to match specific cameras.

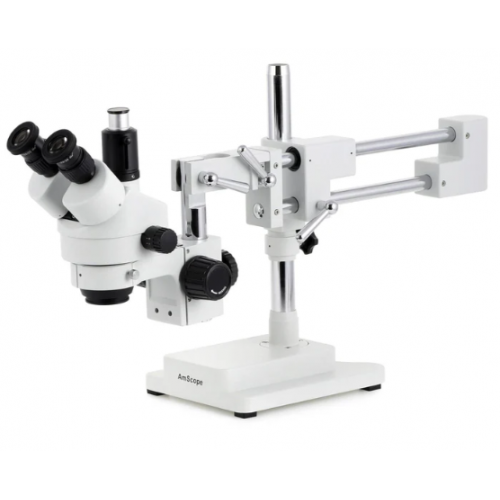

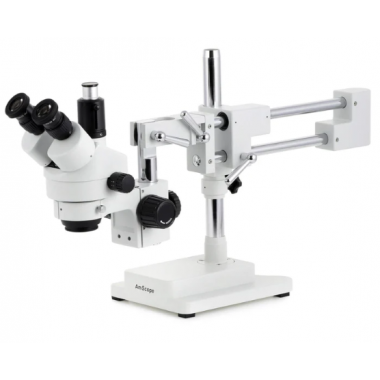

Double-arm Boom-Stand

The multi-pivoting, double-arm stand provides a stable, flexible support system, ideal for hands-on work. Use of a drop-down column allows the head to be positioned at virtually any angle. Ball-bearings provide smooth movement of the lateral arms, which can easily pivot the microscope out of the way when it is not needed. The heavy, steel base ensures the stability of the microscope, even when laden with attachments.

Packing List:

• One trinocular stereo microscope head
• One photo port attachment
• One pair 10X eyepieces
• One pair eye-guards
• One double-arm boom-stand with focusing rack
• One 144 LED Ring light

AmScope 144 LED Intensity-Adjustable Ring Light: Stereo Microscope Accessory with Black Housing

This is a 144-LED intensity adjustable ring light for stereo microscopes with a mounting size 2.4" (61mm) in diameter. The ring light has 2.5" (62.5mm) inside and 3.64" (92.5mm) overall outside diameters. It works with power supplies from a 100-240V and comes with a 1-7/8" (48 mm in diameter) ring adapter. With variable intensity control, it provides cool, even, intense, and focused shadow-free illumination. It is an ideal durable cool light source for all stereo microscopes. This kit comes with one year warranty against manufacturing defects.

Features & Specifications :

• 144 bright white LED bulbs
• 6000K color temperature
• Variable intensity control
• Intense and focused shadow-free illumination
• Power input: 100-240V, 50-60HZ, auto switching
• Fits up to 2.4" (61mm) mount rings
• Inside diameter of the ring light: 2.5" (62.5mm)
• Mounting flange has.63" (16mm) depth
• 48mm threaded mounting ring has a 53.75mm outer diameter
• Overall outside diameter: 4" (100mm)

Packing List :

• One 144-LED Ring Light
• One Power Adapter
• One 48mm Ring Adapter

This set-up does not include a camera.
