Stereo Microscopes
Articulated stand with adjustable tilt, swivel and rotating functions. With desktop clamp for mounting on 10-85 mm tabletops.
Can also be fixed on tables with drilled holes. Supplied with 76 mm holder
ADJUSTABILITY Tilt range ±90° Swivel range 180° Rotation range 360° Height range max. 62 cm
Mounting:
Desktop clamp with adjustable width 10-85 mm, or drilled through the desk for permanent fixation
ETA is around 2 weeks
Key Features
- 7X-45X zoom magnification using high-quality Greenough stereoscopic objective lenses.
- A highly-versatile stereo microscope on a robust single-arm boom-stand which allows the microscope to be positioned at virtually any angle
- Dual diopters can be adjusted to maintain consistent focus throughout the magnification range, greatly improving productivity.
- The stereo optics provide upright images with clear depth-of-field and a wide view for hands-on applications.
- A trinocular photo-port provides a dedicated mount for adding a camera.
- This microscope is ideal for laboratories, repair shops, and engravers.
The SM-3T is a heavy-duty, highly-flexible microscope designed for biological and industrial applications. This model is especially popular in the QC, repair and engraving industries thanks to its ease-of-use and reliability. With its wide zoom range and single-arm boom-stand, this model will become an indispensable instrument in any workshop or lab. This trinocular model has an additional port for mounting a camera, so you can record video or photos without replacing an eyepiece.
Optics
The stereo optics provide clear, sharp images with excellent focus-depth and a large working-distance. With 0.7X-4.5X zoom objectives, moving through the magnification range is as easy as turning a knob. 10X wide-field eyepieces provide an ample magnification range from 7X to 45X, with high-eyepoint optics to accommodate glasses or goggles.
Ocular Adjustment
Dual ocular diopters can be adjusted to maintain consistent focus, greatly improving productivity. Rotating interpupillary adjusters simplify the process of aligning the eyepieces for each user.
Trinocular Port
The switched trinocular photo-port provides a dedicated mount for a camera. When the photo-port is switched open, all light from the left objective is diverted to the port to provide maximum brightness for the camera to guarantee the best quality images.
Single-arm Boom-Stand
The multi-pivoting stand provides a stable, flexible support system, ideal for hands-on work. The single-arm design provides heavy-duty support in a simple form. The head can be turned 360°, the focus-block can swing in either direction, and the lateral arm can rotate and swing to position the head at virtually any angle. The heavy, steel base ensures the stability of the microscope, even when laden with attachments.
Specifications
| Microscope Head | |
| Head Type | Trinocular, 45° incline, 360° rotatable |
| Optical System | Greenough stereoscopic |
| Interpupillary Adjustment | Compensation-free gemel, 54-76mm |
| Ocular-port Diameter | 30mm |
| Dioptric Adjustment | Both oculars, ±5dp |
| Eyepieces | 10X |
| Photo Port | height-adjustable 23mm tube, SM series |
| Objective Lenses | 0.7X-4.5X zoom |
| Objective Numerical Aperture | 0.065 @ 4.5X 0.02 @ 0.7X |
| Objective Resolution | 195 lp/mm @ 4.5X 60 lp/mm @ 0.7X |
| Native Field-of-View | 4.4mm-28.6mm |
| Native Working Distance | 100mm |
| Auxiliary (Barlow) Lens | none included |
| Stand | |
| Stand Type | Single-arm boom-stand, cast-steel base |
| Stand Dimensions | 16" arm (overall length: 24"), 17" high pillar, 9" x 9" x 1-3/4" solid cast steel base |
| Focusing-block Focus Range | 50mm |
Packing List:
- One trinocular stereo microscope head
- One photo port attachment
- 10X eyepiece(s)

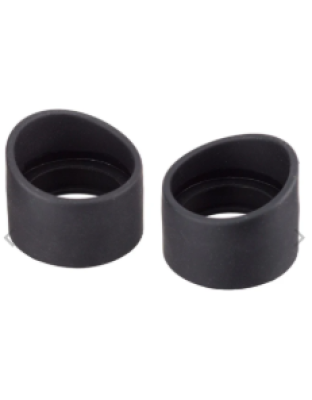

- One pair eye-guards
- One single-arm boom-stand with focusing rack
ETA 7 - 10 days from payment confirmation.
Key Features
- Provides intense and focused shadow-free illumination
- 2.5" (62.5mm) inside and 3.64" (92.5mm) overall outside diameters
- Power input: 110-240V, 50-60HZ, auto switching
- 1-7/8" (48 mm in diameter) ring adapter included
Key Features
- This lens comes with a 1-7/8" (48mm) mounting thread and goes with SM and SW series stereo microscopes.
- Mounting size: 1-7/8" (48mm) in diameter.

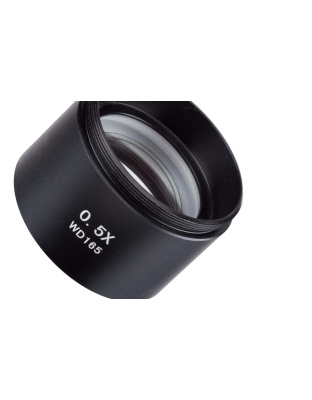

This is a 0.5X Barlow (auxiliary objective) lens for stereo microscopes. It doubles the working distance and field of view of your microscope and cuts the magnification power by half. This lens comes with a 1-7/8" (48mm) mounting thread
Optics
The stereo optics provide clear, sharp images with excellent focus-depth and a large working-distance. With 0.7X-4.5X zoom objectives, moving through the magnification range is as easy as turning a knob. 10X wide-field eyepieces provide an ample magnification range from 7X to 45X, with high-eyepoint optics to accommodate glasses or goggles.
Ocular Adjustment
Dual ocular diopters can be adjusted to maintain consistent focus, greatly improving productivity. Rotating interpupillary adjusters simplify the process of aligning the eyepieces for each user.
Trinocular Port
The switched trinocular photo-port provides a dedicated mount for a camera. When the photo-port is switched open, all light from the left objective is diverted to the port to provide maximum brightness for the camera to guarantee the best quality images. This microscope uses our CX series trinocular port, so it can be easily replaced with optional C-mount ports to match specific cameras.

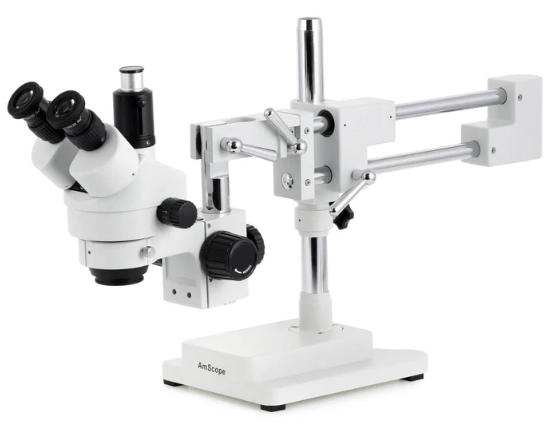

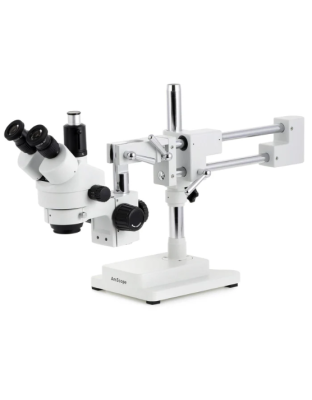

Double-arm Boom-Stand
The multi-pivoting, double-arm stand provides a stable, flexible support system, ideal for hands-on work. Use of a drop-down column allows the head to be positioned at virtually any angle. Ball-bearings provide smooth movement of the lateral arms, which can easily pivot the microscope out of the way when it is not needed. The heavy, steel base ensures the stability of the microscope, even when laden with attachments.
Specifications
| Microscope Head | |
| Head Type | Trinocular, 45° incline, 360° rotatable |
| Optical System | Greenough stereoscopic |
| Interpupillary Adjustment | Compensation-free gemel, 54-76mm |
| Ocular-port Diameter | 30mm |
| Dioptric Adjustment | Both oculars, ±5dp |
| Eyepieces | 10X |
| Photo Port | height-adjustable 23mm tube, CX series |
| Objective Lenses | 0.7X-4.5X zoom |
| Objective Numerical Aperture | 0.065 @ 4.5X 0.02 @ 0.7X |
| Objective Resolution | 195 lp/mm @ 4.5X 60 lp/mm @ 0.7X |
| Native Field-of-View | 4.4mm-28.6mm |
| Native Working Distance | 100mm |
| Auxiliary Lens Mount | 48mm thread |
| Auxiliary (Barlow) Lenses Included | none included |
| Stand | |
| Stand Type | Double-arm boom-stand with ball-bearing movement, cast-steel base |
| Stand Dimensions | 50.8cm double-arm (overall length: 76.2cm), 43.18cm high pillar, 33.1cm x 27.9cm x 1.6cm |
| Focusing-block Focus Range | 50mm |
Packing List:
- One trinocular stereo microscope head
- One photo port attachment
- One pair 10X eyepieces
- One pair eye-guards
- One double-arm boom-stand with focusing rack
- One 144 LED Ring light

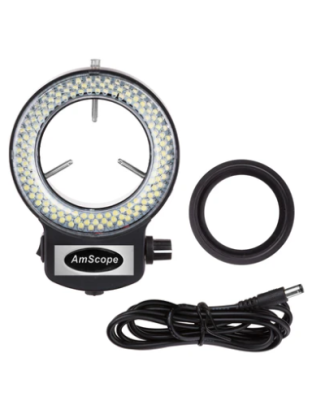

AmScope 144 LED Intensity-Adjustable Ring Light: Stereo Microscope Accessory with Black Housing
This is a 144-LED intensity adjustable ring light for stereo microscopes with a mounting size 2.4" (61mm) in diameter. The ring light has 2.5" (62.5mm) inside and 3.64" (92.5mm) overall outside diameters. It works with power supplies from a 100-240V and comes with a 1-7/8" (48 mm in diameter) ring adapter. With variable intensity control, it provides cool, even, intense, and focused shadow-free illumination. It is an ideal durable cool light source for all stereo microscopes. This kit comes with one year warranty against manufacturing defects.
Features & Specifications :
- 144 bright white LED bulbs
- 6000K color temperature
- Variable intensity control
- Intense and focused shadow-free illumination
- Power input: 100-240V, 50-60HZ, auto switching
- Fits up to 2.4" (61mm) mount rings
- Inside diameter of the ring light: 2.5" (62.5mm)
- Mounting flange has.63" (16mm) depth
- 48mm threaded mounting ring has a 53.75mm outer diameter
- Overall outside diameter: 4" (100mm)
Packing List :
- One 144-LED Ring Light
- One Power Adapter
- One 48mm Ring Adapter
