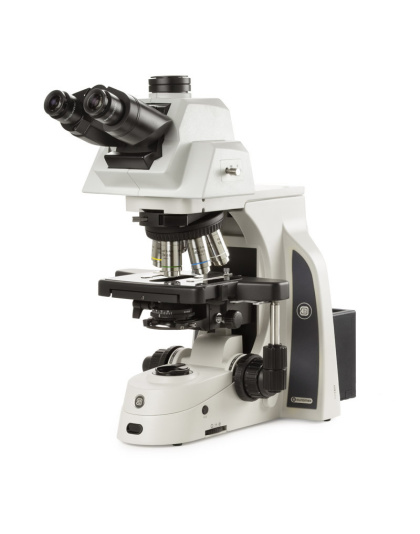

DX.2158-APLi - Delphi-X Observer, trinocular microscope with 0-35° tilting head, SWF 10x/25 mm @ 30 mm

eyepieces, plan semi-apachromatic APLi 4/10/20/S40/S100x oil IOS objectives, EIS 60 mm parfocal, 190 x 152 mm stage with 80 x 54 mm mechanical stage and 100 W halogen illumination SWF 10x/25 mm eyepieces LJ Trinocular head with Siedentopf 0-35? tilting @ 30 mm tubes ) Interpupillary distance 47-78 mm with diopter adjustment on both eyepieces Revalving sextuple reversed nosepiece on ball bearings in Plan semi-apochromatic PLAi 4x/0.13, 10x/0.30, 20x/ ls immersion IOS objectives, EIS 60 mm parfocal objectives. M25 thread a 1 All optics are anti-fungus treated and anti-reflection coated for maximum light throughput o om 180 mm x 152 mm stage equipped with integrated 80 x 54 mm mechanical stage and _ scratch-resistant Gorilla™ glass Height adjustable Abbe swing-out N.A. 0.90/ 1.25 condenser with numerical aperture engravings Coaxial coarse and fine adjustments with 100 graduations. Precision 1 um, 0.1 mm per rotation, Total travel approximately 35 mm Rack-stop for protection of slides and objectives. Friction adjustment Diascopic intensity adjustable 100 W halogen illumination with Internal 100-240 V power supply (CE) iCare Sensor: the illumination of the microscope automatically switches off when the microscopist steps away from his position, saving energy Carrying grip at the back of the microscope for safe transportation and Allen screwdriver in integrated holder Supplied with power cord, 5 A 250 V spare fuse, 5 ml immersion oil, dust cover and user

• Availability: In Stock at Supplier, ETA 7 - 14 days
• Model: DX.2158-APLi
• SKU: DX.2158-APLi
