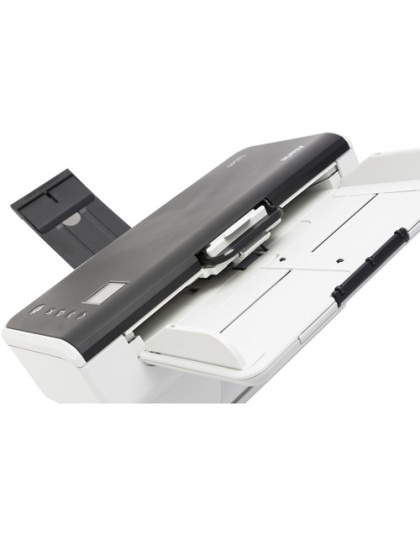

Kodak Alaris S2070 Scanner
The KODAK S2070 Scanner is a mid-to-high volume solution built to let you capture information anywhere, with superior image quality and data accuracy. When you need to get information captured quickly, the S2070’s paper handling, out-of-the-box workflow profiles, and software will put you on the road to digital transformation.
R17,999.96
Specifications
| Product Highlights | Streamline your business processes and take the complexity out of document preparation using Intelligent Barcode Reading to produce the most accurate data extraction results. |
| Throughput Speeds Hover over me | 70 ppm / 140 ipm |
| Feeder Capacity | Up to 80 sheets of 80 g/m² (20 lb.) paper Hover over me |
| Connectivity | USB 2.0 compatible USB 3.2 Gen 1x1 Hover over me |
| Maximum Document Size Hover over me | 216 mm x 3000 mm (8.5 in. x 118 in.) |
| Minimum Document Size | 52 mm x 52 mm (2.05 in. x 2.05 in.) Hover over me |
| Paper Thickness and Weight | 27–433 g/m² (7.2–160 lb.) paper Hover over me Hard card thickness up to 1.25 mm (0.05 in.) |
| Maximum Optical Resolution | 600 dpi |
| Accessories and Consumables | Carrier Sleeves (5 PACK) Feed Roller Kit Integrated A4/Legal Flatbed KODAK A3 Size Flatbed Accessory Passport Flatbed Accessory Pre-Separation Pad & Roller Kit Stacking Deflector Accessory |
| Acoustical Noise | Off or Ready mode: < 20 dB(A) Scanning: <50 dB(A) |
| Approvals and Product Certifications | Argentina (S mark) Australia/New Zealand (RCM) Canada (cTUVus & ICES-003) China (CCC) European Union (CE) European Union (GS Mark) India (BIS) Japan (VCCI) Mexico (NOM) South Korea (KC) Taiwan (BSMI) US (cTUVus & FCC) |
| Barcode Reading | Codabar Code 128 Code 3 of 9 EAN-13 EAN-8 Interleaved 2 of 5 PDF417 QR UPC-A UPC-E |
| Bundled Software Hover over me | Capture Pro Limited Edition Smart Touch |
| Data Security | This scanner processes scanned data exclusively through volatile memory ensuring image data is effectively erased upon shut down. Hover over me |
| Dimensions and Weight |
|
| Electrical Requirements | 100-240 V (International); 50-60 Hz |
| Environmental Certification | 2008 EuP ENERGY STAR Qualified EPEAT Gold |
| Image Output Resolution Options | Up to 1200 dpi Hover over me |
| File Format Outputs | BMP Hover over me JPEG Hover over me Microsoft Excel Hover over me Microsoft Word Hover over me Multipage TIFF Hover over me PDF Hover over me PNG Hover over me RTF Hover over me Single-page TIFF Hover over me Text searchable PDF Hover over me |
| Operating System Compatibility | Debian 10.8 Pardus 19.5 SUSE Linux Enterprise Desktop 15 SP5 for 64-bit Ubuntu 18.04 64-bit Ubuntu 20.04 64-bit WINDOWS 10 (32- and 64-bit) WINDOWS 11 (64 bit) Hover over me WINDOWS Server 2016 X64 Editions WINDOWS Server 2019 X64 Editions WINDOWS Server 2022 X64 Editions WINDOWS XP SP3 (32-bit and 64-bit) (available only in China) Ubuntu 22.04 (64-bit) Ubuntu 24.04 64-bit SUSE Linux Enterprise Desktop 15 SP7 for 64-bit |
| Operating Temperature and Humidity | Operating Humidity 15% - 80% RH Operating Temperature 10-35° C (50-95° F) |
| Operator Control Panel | 1.5 inch (38mm) Color Graphic Display |
| Optional Software | Capture Pro Software Info Input Solution |
| Paper Handling (SurePath) Features | Controlled stacking Enhanced jam recovery Intelligent Document Protection Interactive multifeed with image display on host Length Multifeed Detection Ultrasonic Multifeed Technology Operator overrides |
| Perfect Page Image Enhancement Software | Adaptive threshold processing Add or remove border Aggressive cropping Auto white balance Autocrop Automatic Brightness/Contrast Automatic color balance Automatic color detection Automatic orientation Automatic photo cropping Background color smoothing Barcode reading Black and white image segmentation Brightness and contrast adjustment Content-based blank page removal Deskew Digital stamping Dual stream scanning Electronic color dropout Enhanced color adjustment Enhanced color management Fixed cropping Fixed thresholding Halftone removal Image edge fill Image hole fill Image merge Image split iThresholding Lone Pixel Noise Removal Long document scanning (up to 3000 mm/118 in.) Majority rule noise removal Multicolor dropout Multiple document output Orthogonal rotation Output Compression-CCITT Group IV, JPEG, Uncompressed Output Relative cropping Sharpening Sleeve scanning (for scanning A3 documents or multiple small documents) Streak filtering |
| Power Consumption | Running: less than 36 watts Sleep Mode: less than 3.0 watts Standby: less than 0.5 watts |
| Recommended Daily Volume | Up to 10,000 pages per day |
| Recommended PC Configuration | Minimum PC configuration with scanning application: Intel Core i3 processor or faster, at least 4 GB RAM (Microsoft Windows) |
| Scanning Technology | Dual RGB LED Illumination CIS (CMOS); Grayscale output bit depth is 256 levels (8-bit); color output bit depth is 24 bits (8 x 3); color capture bit depth is 48 bits (16 x 3) |
| Standard Software and Drivers | Citrix certified ISIS Drivers KOFAX certified LINUX (TWAIN and SANE) Drivers TWAIN Drivers WIA Drivers |
| Prices | R18,000 |
- Availability: In Stock at Supplier, ETA 7 - 14 days
- Model: Alaris S2040
